Technology & equipment: Efficient intralogistics processes with the best tugger train technology
With innovative and sophisticated technology, the Industry Train tugger train offers exactly what is needed for efficient intralogistics. Many technical features are integrated into the standard equipment. This ensures a high level of safety. Driving and operating the Industry Train tugger train is optimally designed to meet the ergonomic needs of employees. And service and maintenance costs are kept to a minimum thanks to the durable design with operating hours counter and maintenance instructions, as well as the option of remote diagnosis.
Automatic speed reduction
The tugger train automatically reduces its speed when cornering until it is travelling straight ahead again – without any ‘whiplash effect’.
Diagonal travel / crab walk
All steering axles turn in the same direction to move the route train diagonally in a ‘dog walk’ pattern – for easy lane changes and loading or unloading in narrow alleys. No getting stuck.
Individually controllable lifting functions
Efficient operation through centralised or direct control of the individual lift platforms on the tractor or the modules/load carriers.
Suspension / low-noise operation
Suspension and backlash-free coupling protect the goods from shocks and impacts and ensure quiet operation.
CAN bus control
CAN bus control automatically detects the load carriers in the tugger train and constantly monitors the entire system. Permanent communication.Tractor lock and lowering release
Automatic locking of the tractor when the load carriers are lowered and lowering release when the handbrake is applied enable safe loading and unloading.
Service and maintenance
The operating hours counter and maintenance indicator light with fixed intervals ensure long and reliable operating times for the tugger train.Electric operation / Oil-free complete system
Electric operation combined with the oil-free overall system ensures high efficiency and good energy efficiency. No environmental pollution due to oil loss (leaks).
Stepless lifting mechanism
The electric, infinitely variable lifting mechanism enables consistent lifting characteristics with constant lifting and lowering speeds, without the use of hydraulics.Waterproof
The cable harness is equipped with waterproof connectors that comply with protection classes IP64 to IP68.Outdoor capability
The robust frame construction with a 3-point system on the IT500 or pendulum axles and swivelling bearings on the IT800 makes the device suitable for off-road use. It offers a long service life and high durability.
Weather protection system (optional)
Wind and rainproof weather protection; horizontal struts in the tarpaulin; labyrinth guide; tapered aluminium roof; simple and quick to use. No sagging of the tarpaulin. Completely waterproof. Ergonomic.Electric braking system (optional)
Electronically controlled single-wheel braking system with ABS ensures safe braking and uniform deceleration of the entire tow train.Expert opinion for §70 StVZO (option)
The report confirms roadworthiness and is a prerequisite for obtaining a special permit in accordance with §70 StVZO (German Road Traffic Licensing Regulations) for the use of the tugger train on public roads, e.g. for road crossings or short distances.Lighting system (optional)
Lighting with rear lights, brake lights, indicators and rotating beacons, outline lights on the load carrier and reflectors or reflective strips.Passage barrier tapes (optional)
Roll-up barrier tapes between the load carriers ensure greater safety.
Special colours (optional)
Special colours include special paint finishes for the module cladding (chassis) as well as different colours and prints for the weather protection tarpaulin.Electric steering / Precise tracking
The electronically controlled steering ensures precise guidance of the route train. With the ‘Virtual Track’ function, the train runs as if it were guided on rails – for maximum stability and safety.
Industry Train Tugger Train: References and customer vehicles
Huber+Suhner AG
Pöppelmann GmbH & Co. KG
Huber+Suhner AG
Horsch Leeb Application Systems GmbH
BLG Industrielogistik GmbH & Co. KG
Horsch Leeb Application Systems GmbH
Unternehmen in Österreich
Liebherr-Werk Bischofshofen GmbH
Deutsche Bahn Werk Krefeld
Reishauer AG
Liebherr-Werk Ehingen GmbH
Hauff-Technik GmbH & Co. KG
This might also be of interest to you

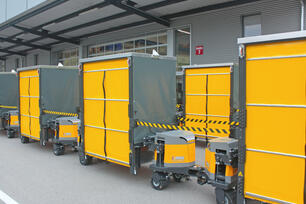

Industry Train series of tugger trains
